How Does a Forklift Work?

How Does a Forklift Work?

Forklifts use a combination of hydraulics, a pulley system and other things to lift heavy materials across different distances. They are commonly used in warehouses, construction sites and other places that need to transport lots of heavy materials. We know where it’s used, but how does a forklift work?

To answer that, we put together this guide to break down what a forklift is used for, its different parts and how it works.



What Is the Purpose of a Forklift?
A forklift is mainly used to carry heavy loads across long distances of varying terrain. It’s useful for projects that require lots of materials in various places and cuts down the time and effort needed to lift, carry and transport.

What Are the Main Parts of a Forklift?

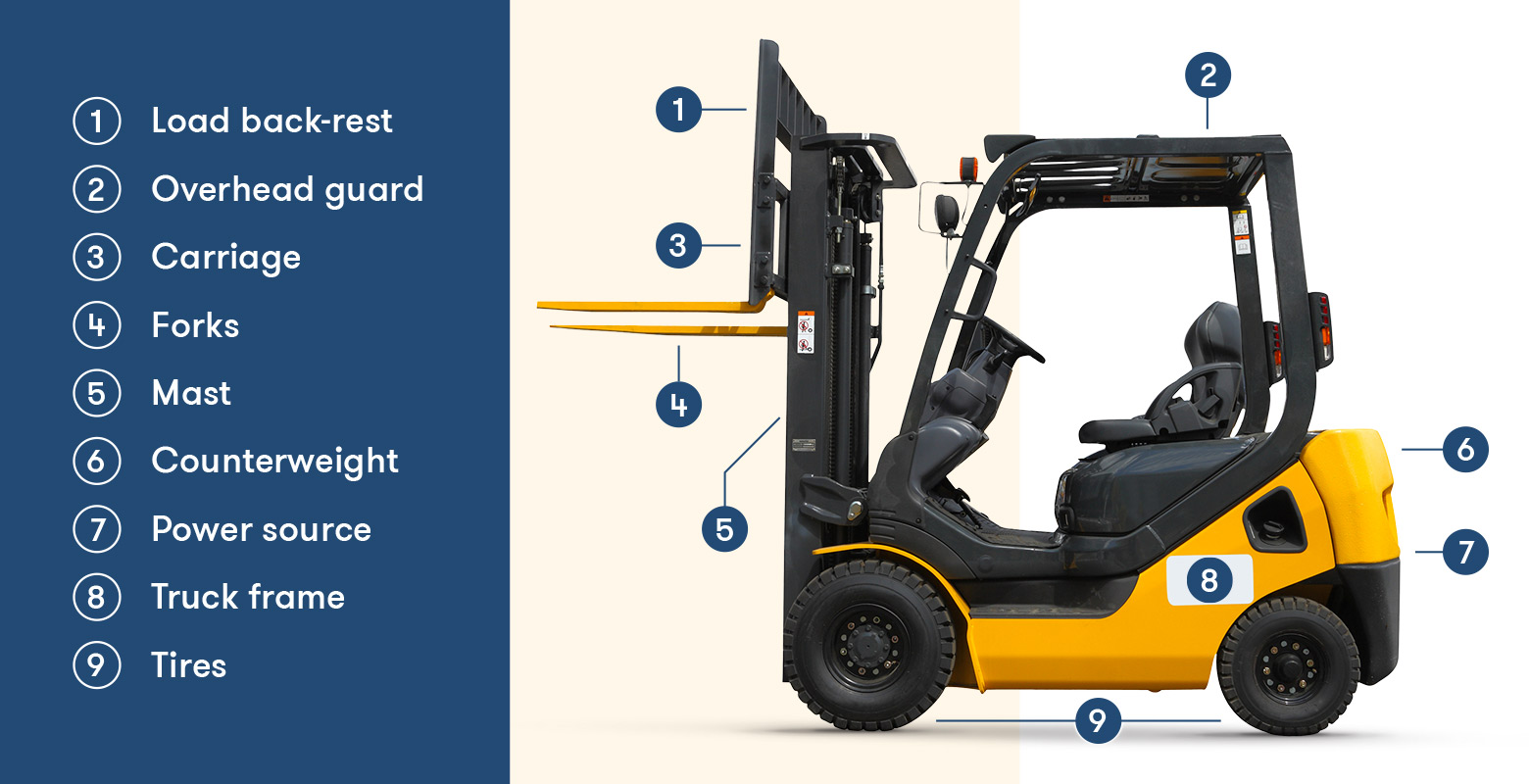

A forklift can lift lots of weight without tipping over, thanks to its design. Each part is crucial to keep the functioning and operators safe while operating a forklift. These parts vary depending on the model. For example, some forklifts are more suited for rugged terrain while others are not. These are the basic parts of most forklifts:

Picture is from the Web

-Load back-rest: This part keeps the load from shifting backwards.
-Overhead guard: This section of the forklift protects operators from a load if it falls.
-Carriage: The carriage is the base of the forklift and is fixed on mast rails to easily move up and down.
-Forks: These are the prongs that carry loads.
-Mast: The mast raises and lowers the load. It also has interlocking rails that provide horizontal control.
-Counterweight: This weight is used to stabilize the forklift and keep it from tipping over.
-Power source: Forklifts can be powered by things like fuel cells, propane gas, gasoline, diesel engine or batteries.
-Truck frame: The frame is the base of the machine and all parts are attached to it.
-Tires: Forklifts can use pneumatic tires (normally used outdoors) or solid tires (sometimes called cushion tires) that are used both indoors and on hard, flat surfaces.

The most important parts of the forklift are the hydraulic system, chain pulley system and the forklift controls. Both systems and the controls are vital for the forklift’s power and lifting abilities. We’ll dive into each part below.



How Does the Forklift Hydraulic System Work?
The hydraulic system uses a series of cylinders, pistons and fluids to efficiently lift and lower forklift loads. The hydraulic pistons are attached to the forklift’s masts.

Here are a few parts of the forklift’s hydraulic system to familiarize yourself with before understanding how it works:
-Lift handle: Operator pushes this to lift or lower the forklift’s load. This handle is connected to a pump found at the machine’s base.
-Pump: When activated, it pushes fluid through a tube leading to both hydraulic cylinders.
-Hydraulic cylinders: These are composed of a hollow tube that is shut on one end to trap fluids. A movable, lubricated piston is equipped on the other end.

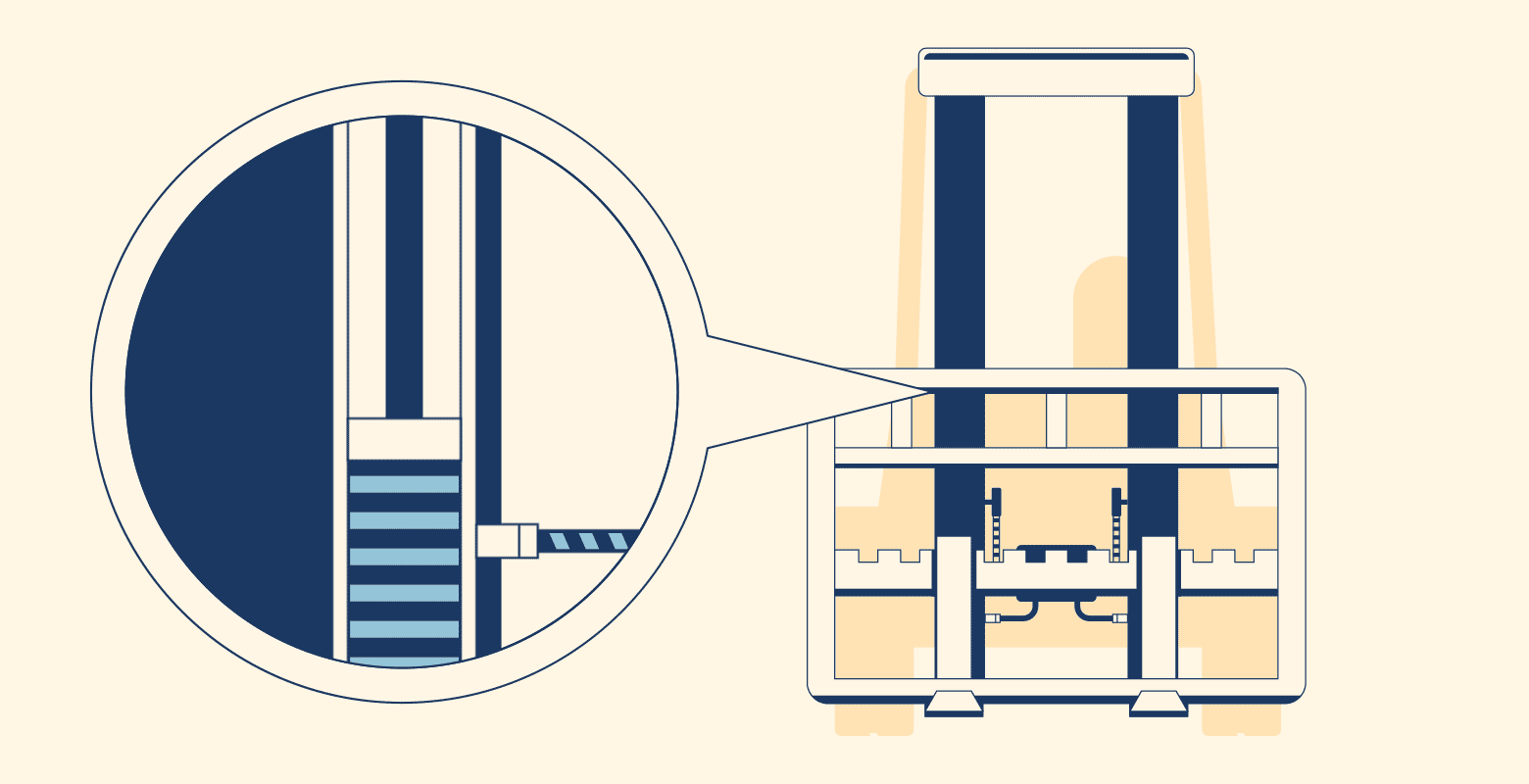

Here’s how the hydraulic system works:

Picture is from the Web

1. Fluid enters the hydraulic cylinder through a special valve that allows it to enter without it escaping. Pressure increases as fluids increases in the cylinder.
2. Upward force is created when pressure is applied across the area of the piston head.
3. The piston moves up as a result of the force below it. This increases fluid and decreases pressure.
4. Physical equilibrium is achieved at this point when, at a given lift height, the fluids’ force is equal to the forklift load’s downward force.



How Does the Forklift Roller Chain Pulley System Work?

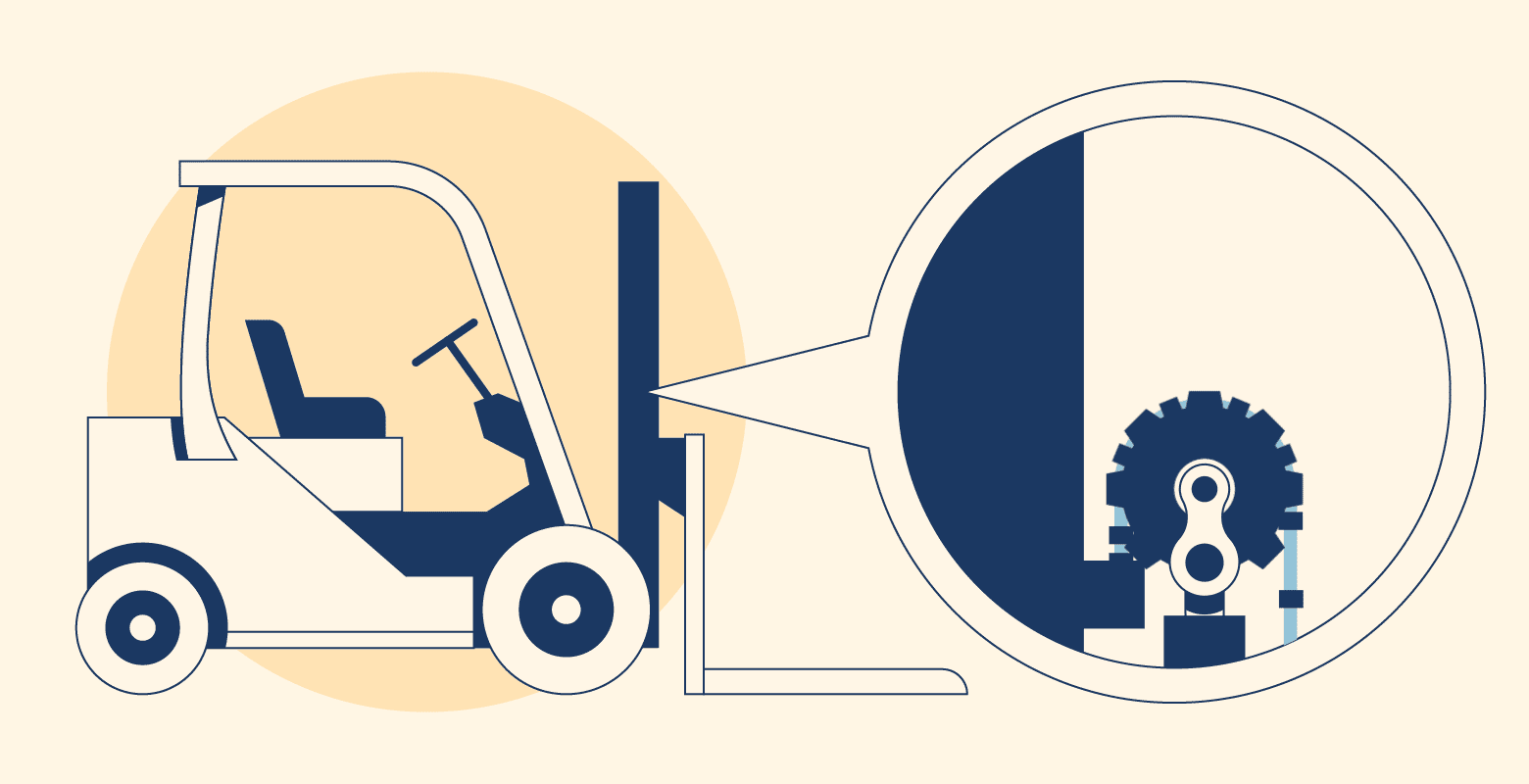

The machine’s forks that carry the load are attached to the frame with a pair of roller chain pulleys. The pulley’s fulcrum is a gear found at the top of the mast. Here’s how the roller chain pulley system works:

Picture is from the Web

1. Hydraulic pistons push the masts up.
2. Gears located on the mast are pressed against the roller chains.
3. The masts move up and pulls the fork up.

The masts can only move up if the gear rotates clockwise and lifts the fork. This is because one side of the chain is attached to the forklift’s frame.

This system allows the fork to lift higher than it would if the forklift relied solely on the hydraulic system. If it only used hydraulics, the forklift would need taller cylinders to reach the same height. Taller cylinders require more materials, stronger pumps and higher pressure limits that can shift the forklift’s center of gravity, increase the risk of tipping and overall increase the level of danger when using forklifts.



Forklift Controls
A forklift’s main controls are for steering and lifting. Although it sounds simple, understanding how both of these work helps an operator safely and efficiently get the job done.

Picture is from the Web



Forklift Types and Uses
There are many different types of forklifts to choose for your project. The various types of power used, terrain, weight capacity and many other features contribute to this equipment’s versatility. In addition to warehouses and construction sites where you typically see forklifts, you can also find them at dockyards and recycling operations.

Here are a few common ways forklifts are used:
Construction sites: Carry building material across long distances and rough terrain
Warehouses: Unload and load trucks to store goods in a warehouse
Recycling operations: Unload recycling materials and transport to their respective sorting areas
Dockyards: Load girth materials on and off ships and barges, especially when swift loading is needed
Snow plows: Clear away snow when using a special attachment

Forklifts are great pieces of heavy equipment to carry and transport materials across the work site with little to no effort. Check out our wide selection to see which machine works best for your project.
