Comprehensive Guide of Excavator Attachments

Excavator attachments are the most important part of construction sites. You need to perform multiple jobs at the site. However, you must think, how is this all possible with only excavators? Well, the attachments of excavators make it all happen. You can use different attachments for different types of tasks. In this article, You will learn about multiple excavator attachments and how to use them. For example, some common attachments are: digging bucket, trenching bucket, tilt bucket, ditching bucket, grapple, quick hitch, auger, rippa, hammer, dozer blade and so on.

Let’s dig into the article to learn more about it!

-Bucket
Used for material handling at bulks. Unlike other attachments used in excavators, the bucket has inner volume, which is standard configuration on excavators.
There are various types of buckets. Some of them are given below:
·Tilt Bucket
Tilt buckets are almost used in all worksites. The tilt bucket has the correct shape with sharp edges. Its efficiency in digging can be maximized if using the proper form. Due to the Sharp edge of the tilt bucket, you can go deeper into the earth. The tilt bucket is advanced and allows better control for the operator in digging and trenching.
·Trenching Bucket
A Trenching Bucket is purpose built to easily dig narrow and/or deep trenches and are built to withstand harsh digging conditions in soil, sand, clay and other light to medium materials. Width is usually 30-40 cm.
·Ditching Bucket
A Ditch Cleaning Bucket is a wide, shallow bucket with a straight edge, designed for ground leveling and smoothing out aggregates and soil. The bucket is manufactured with a low profile to allow for increased width without an increase in weight.

Picture is from the web

-Quick Coupler
A Quick Coupler, also called Quick Hitch, goes between the excavator and the bucket, making it easier to replace the equipment. Thanks to this tool,installing and removing the bucket on and from the excavator's arm is faster, increasing work efficiency. Quick couplers can be maunal or hydraulic.

-Grapple
A Grapple maximizes material handling capabilities in heavy-duty settings, enabling them to handle large, unwieldy materials. Grapples can also help operators increase mobility and access hard-to-reach areas by extending their excavators’ reach.
With a grapple, you can accomplish multiple industrial applications, include: Demolition, Rock handling, Land clearing, Landscaping and so on.

-Dozer Blade
A Dozer Blade, also known as S-blades, are the most basic blade type. This blade is best suited for general-purpose grading and levelling. It is also commonly used for backfilling trenches and pushing large amounts of material.

-Hook
For an experienced operator, it is very easy to use. The process of ripper is that it just rips up the ground. It has a distinct appearance. It can break hard surfaces such as paved areas or frozen ground. Construction sites prefer rippers over other attachments as they do not produce much noise and can operate quickly.

-Auger
An Auger is used to dig holes. It can also be used to remove debris and soil and break up hard ground. This tool allows you to quickly dig a hole in any location where you need it. The auger attachment is simply connected to your excavator, and you can get to work. Importantly, augers are versatile enough to make holes in different types of terrain, such as dirt, sand or rock.

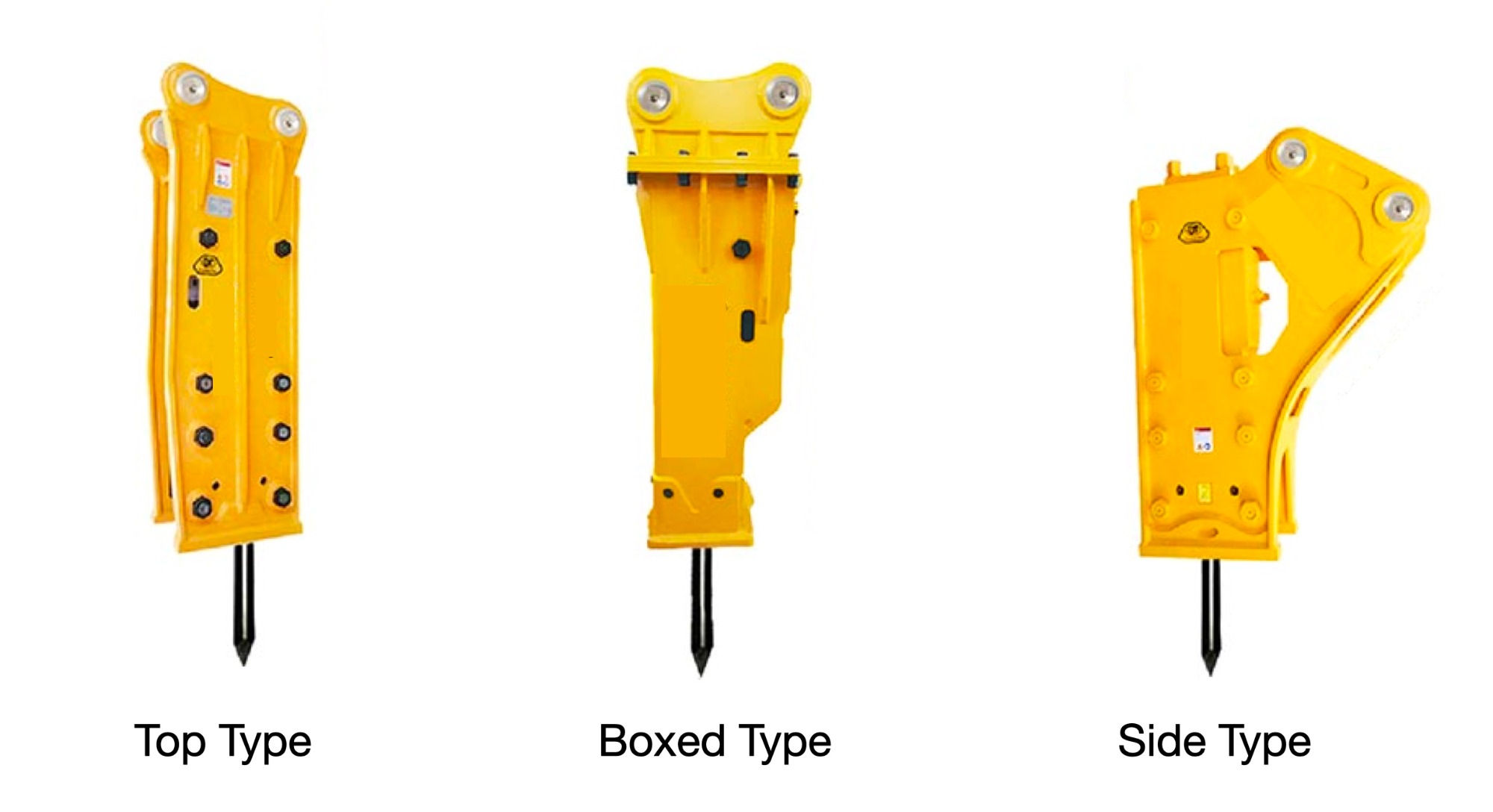

-Hammer
A Hammer, also called a breaker is a powerful percussion hammer fitted to an excavator for demolishing hard (rock or concrete) structures. It is powered by an auxiliary hydraulic system from the excavator, which is fitted with a foot-operated valve for this purpose.
It is designed to take on some of the most demanding applications, from commercial demolition projects to breaking massive slabs of concrete to open-pit mining.
